Cross-Cut - Maintain roads faster and easier |
|
|
Whether you are a township trustee, with 50 miles of roads, or you're in charge of maintaining
an agricultural, oilfield, or industrial facility, the CROSS-CUT offers an efficient
method of maintaining a smooth driving surface.
Faster travel speed, with less power required than a motor grader, means that labor, fuel
and equipment costs are significantly reduced. Less costs per mile allow for more frequent
maintenance, resulting in happier drivers.
|
Cross-cut style blades attack washboards, ruts and pot holes from opposing angles, leaving a smoother surface
in one pass, without removing the road material. Gravel is blended with fines, bringing larger aggregate to
the surface. Save money by reclaiming the gravel that's already in the road bed.
Neutral, side to side material flow allows for travel in either direction, without causing windrowing. Stops
and starts can be evened out. Washouts, bridge approaches and irregularities are more easily repaired. Pull-type
design, and tandem wheels allow blades to float over sunken culverts, or soft spots, and to level off high spots.
|
|
The CROSS-CUT offers an unmatched ability to quickly and easily maintain driving surfaces, without requiring
the skill of an experienced heavy equipment operator. Simply lower the cutting edges below the surface and
drive. Precise blade depth and directional control is not as critical as with a moldboard style grader. Since no
windrow is caused by the CROSS-CUT, the inherent danger of a windrow in the center of a road is removed.

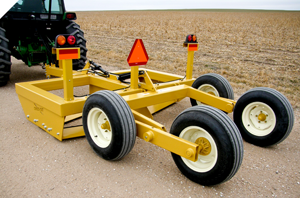

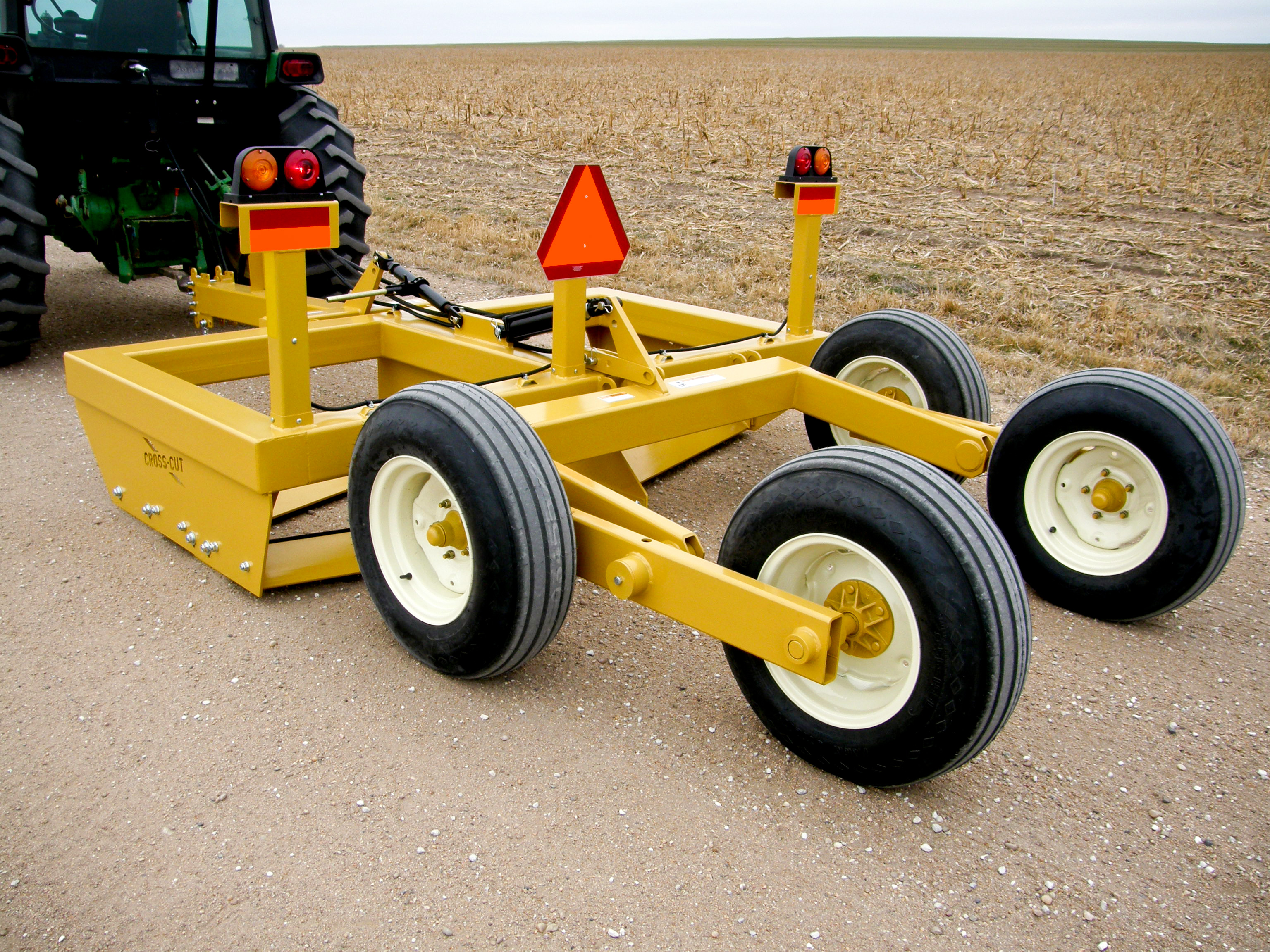

Safety is enhanced with high visibility warning lights and reflectors.
|
 |
 |

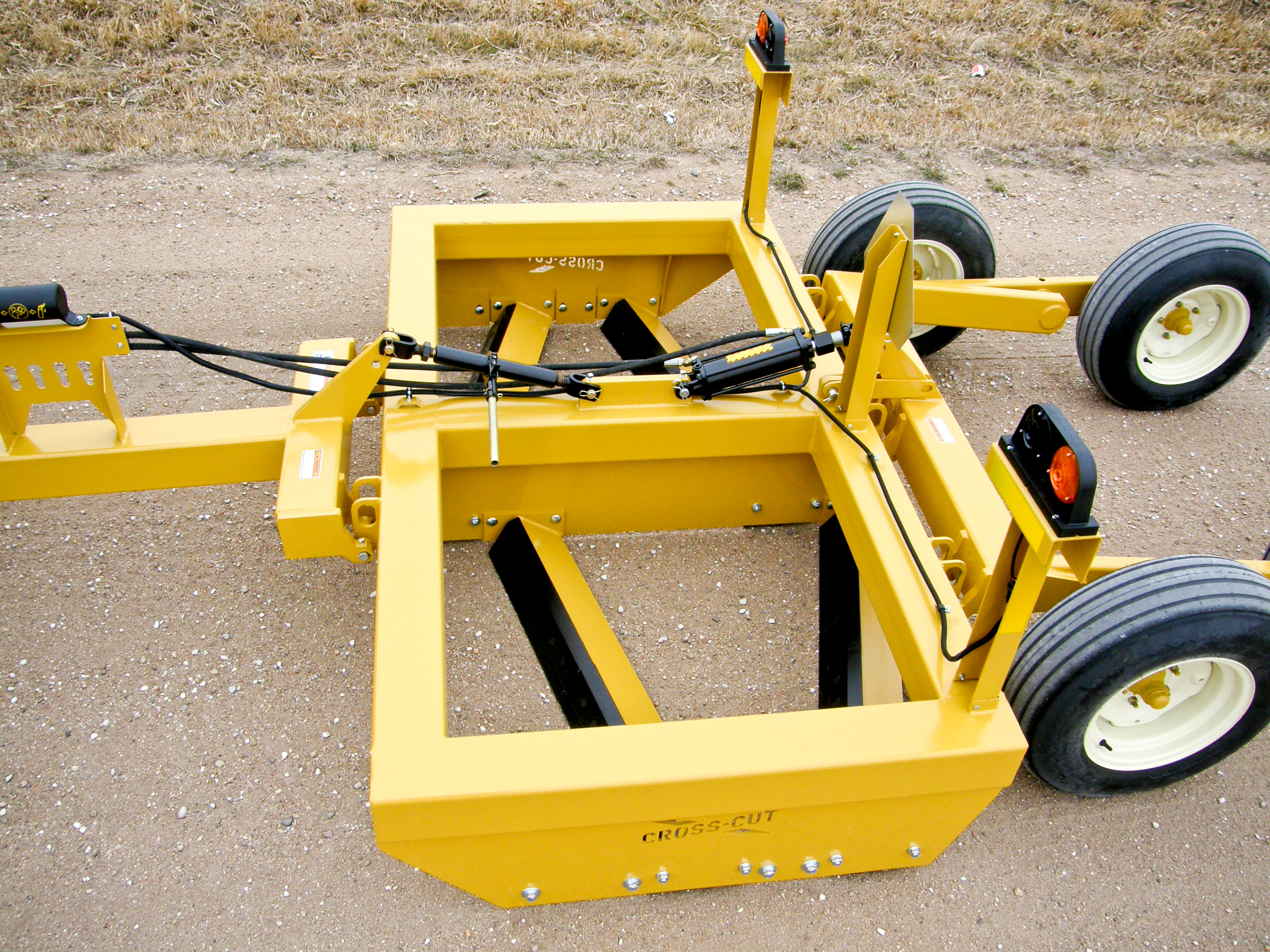

Cutting edges are high carbon, 1"(25mm) thick, double beveled, and hardfaced for long life. Segmented
blades allow for easy rotation from side to side, or front to back, to keep a flatter driving surface. Large tires,
mounted on walking-beam tandem wheels, provide flotation and smooth operation. A massive frame assures
better penetration in hard packed surfaces. The heavy duty frogs guard against damage when encountering
hidden obstructions. Easy one-point leveling system and adjustable router bits make routine maintenance quick
and easy.
|
 |
| Power Requirement |
60-70 hp (45-55 kW) |
70-80 hp (50-60 kW) |
| Width |
122.75" (3,118mm) |
146.75 (3,727mm) |
| Weight |
2,260# (1,025 kg) |
2,550# (1,157 kg) |
| Length |
194" (4,928mm) |
| Height (operating) |
48.62" (1,235mm) |
| Height (transport) |
60.60" (1,539mm) |
| Tires |
(4) 9.5Lx 15 |
| Hitch |
Clevis, Single Tongue, Lunette |
| Cutting Edges |
1"x6: (25.4x152mm) double bevel, high carbon, hardfaced |
| Lighting |
Warning, turn, tail and stop |
| Hydraulic requirement |
One circuit |
| Electrical requirement |
7 pin connector |
| |
| Materials and specifications are subject to change without notice. |
|
|
|
