Land Plane |
|
|
 |

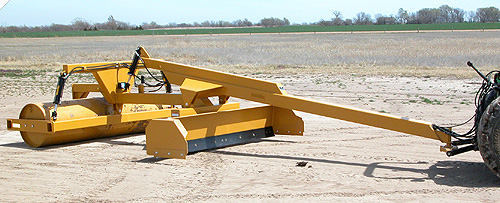

For superb finish work, the Hoelscher Land Plane combines electronic tilt with a long wheel base for fast easy leveling or contouring. The full width roller on the rear packs as low spots are filled.
Simply set the desired slope (left, right, or level) on the electronic display and drive. The cutting edge automatically maintains your preset slope. Ideal for roads and building sites.
Standard equipment includes double bevel heat treated cutting edge, electronic slope indicator, and the patented two-point hitch.
The unit is laser compatible, with the optional solenoid valve. |
 |
| Width (cutting) |
96" |
|
|
| Width (overall) |
99.5" |
|
|
| Wheel Base |
21' (tractor axle to roller) |
|
|
| Length |
243" |
|
|
| Height |
50" |
|
|
| Weight |
2720 lbs. |
|
|
| Hydraulic req'd |
2 circuits |
|
|
| Electrical req'd |
12 vdc |
|
|
| Roller Diameter |
24" |
|
|
| Cutting Edge |
6" double bevel |
|
|
|
|
|
